CADDYBAR™ + 2x Trays
Description

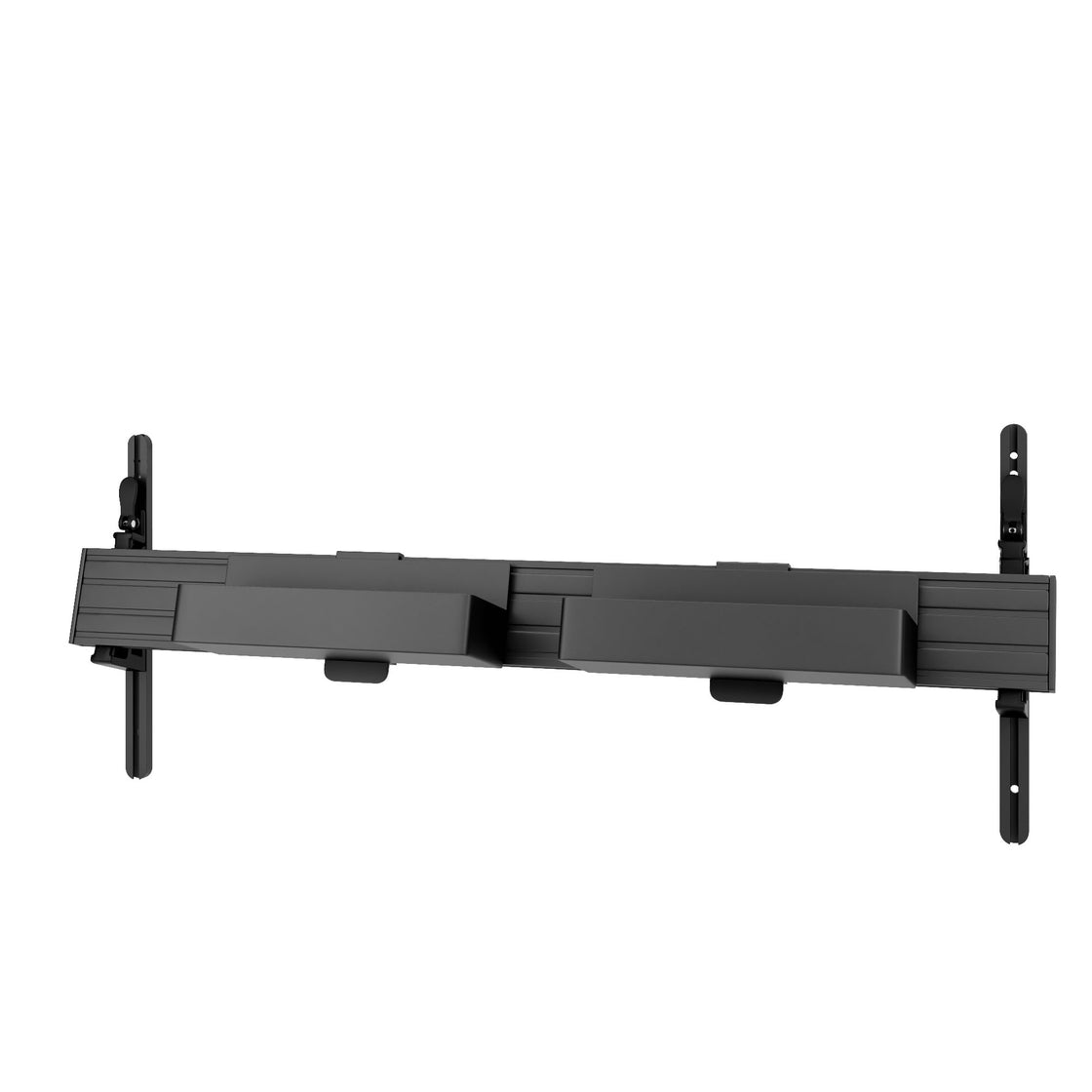

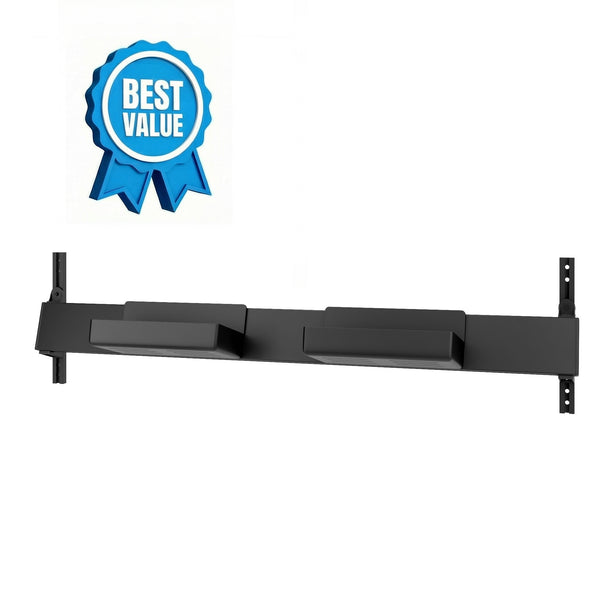

Keep your everyday essentials organized and within reach with the CADDYBAR™ Front Drill Mount. The full-width aluminum bar provides a secure base for your CADDYBAR™ accessories, with metal Universal Mounts that attach directly to your golf cart’s vertical windshield struts.
The bar connects to the Universal Mounts using M5x10 Screws and Low-Profile T Nuts in its top and bottom channels. Choose your mounting position during installation, level the bar, and tighten the hardware to secure your setup.
Keep your everyday essentials organized and within reach with the CADDYBAR™ Front No-Drill Mount. The full-width aluminum bar provides a secure base for your CADDYBAR™ accessories, using heavy-duty steel clamps that attach directly to compatible bare-metal windshield struts without drilling.
The no-drill clamp system uses protective rubber pads to create a rigid, dependable connection while protecting the strut finish. Choose the clamp size that matches your cart’s metal struts.
Key Features
- Smart Storage: Keep personal items organized and accessible with compatible CADDYBAR™ accessories.
- Metal Mounting Hardware: Universal Mounts provide a direct, screw-secured connection to your cart’s vertical windshield struts.
- Secure Channel Connection: M5x10 Screws and Low-Profile T Nuts secure the bar through its top and bottom channels.
- Fit to Your Cart: Choose a bar width from 36" to 42". Measure the outside-to-outside distance between the mounting posts; the aluminum bar can be cut to size if needed.
- Step-by-Step Installation: Follow the illustrated instructions and installation video. Pre-drilling with a 1/8" drill bit is required before installing the M4 Tapping Screws. View the Front Drill Mount installation guide and video.
- Smart Storage: Keep personal items organized and accessible with compatible CADDYBAR™ accessories.
- No-Drill Metal Clamp System: Durable steel clamps attach securely to bare-metal windshield struts—no drilling and no plastic hooks.
- Protective Rubber Pads: Included pads help create a snug fit while protecting the strut finish.
- Rigid & Sturdy: Designed to stay stable while riding and while adding, removing, or adjusting accessories.
- Fit to Your Cart: Choose a bar width from 36" to 42" and select the clamp size for your metal windshield struts.
- Compatibility Notice: Not compatible with windshields that connect to the windshield struts using a plastic sleeve.
Key Components
- CADDYBAR™ Crossbar: Lightweight aluminum bar with top and bottom mounting channels.
- Two Metal Universal Mounts: Attach the crossbar to the cart’s vertical windshield struts.
- Four M4 Tapping Screws: Secure the Universal Mounts to the struts after pre-drilling.
- Four M5x10 Screws and Four Low-Profile T Nuts: Secure the crossbar to the Universal Mounts through the bar’s mounting channels.
- Two End Caps: Finish both ends of the crossbar after the mounting hardware is tightened.
-
CADDYBAR™ Tray (2x) - Above dash storage system to easily access range finder, keys, wallet, purses, or other personal items including sound devices.
- CADDYBAR™ Crossbar: Lightweight aluminum bar with top and bottom mounting channels.
- Two Heavy-Duty Steel Clamp Assemblies: Secure the system to compatible bare-metal windshield struts without drilling.
- Protective Rubber Pads: Included to help size the clamp fit and protect the strut finish.
- Two End Caps: Finish both ends of the crossbar after installation.
-
CADDYBAR™ Tray (2x) - Above dash storage system to easily access range finder, keys, wallet, purses, or other personal items including sound devices.
Product Specifications
- CADDYBAR™ Crossbar: 36–42" L × 0.7" D × 3.5" H.
- Universal Mount (each): 0.7" L × 1.5" D × 5.1" H.
- System Weight: 3 lbs.
- Mounting Method: Fixed drill mount on the cart’s vertical windshield struts.
- Required Pre-Drilling: 1/8" drill bit before installing the M4 Tapping Screws.
- CADDYBAR™ Tray: 10.94" L x 5.5" D x 4.1" H, 1.75 lbs.
Fits: 1″ square metal struts.
- 1" inner clamp: 134 H × 59.46 W × 31.97 D mm.
- 1" outer clamp: 134 H × 62.01 W × 28.47 D mm.
- Steel thickness: 2.67 mm (12 gauge).
Fits: Metal struts over 1″ to 1¼″, including 1⅛″.
- 1¼″ inner clamp: 134 H × 65.81 W × 38.32 D mm.
- 1¼″ outer clamp: 134 H × 68.13 W × 34.02 D mm.
- Steel thickness: 2.67 mm (12 gauge).
- CADDYBAR™ Crossbar: 36–42" L × 0.7" D × 3.5" H.
- Mounting Method: No-drill steel clamps on compatible bare-metal windshield struts.
- 1" clamp: Fits 1" square metal struts.
- 1" inner clamp: 5.276" H × 2.341" W × 1.259" D.
- 1" outer clamp: 5.276" H × 2.441" W × 1.121" D.
- Steel Thickness: 0.105" (12 gauge).
- 1¼" clamp: Fits metal struts over 1" to 1¼", including 1⅛".
- 1¼" inner clamp: 5.276" H × 2.591" W × 1.509" D.
- 1¼" outer clamp: 5.276" H × 2.682" W × 1.339" D.
- Steel Thickness: 0.105" (12 gauge).
- Compatibility Notice: Not compatible with plastic windshield sleeves.
- CADDYBAR™ Tray: 10.94" L x 5.5" D x 4.1" H, 1.75 lbs.
Fits: 1″ square metal struts.
- 1" inner clamp: 134 H × 59.46 W × 31.97 D mm.
- 1" outer clamp: 134 H × 62.01 W × 28.47 D mm.
- Steel thickness: 2.67 mm (12 gauge).
Fits: Metal struts over 1″ to 1¼″, including 1⅛″.
- 1¼″ inner clamp: 134 H × 65.81 W × 38.32 D mm.
- 1¼″ outer clamp: 134 H × 68.13 W × 34.02 D mm.
- Steel thickness: 2.67 mm (12 gauge).
Returns & Exchanges
- 30-day returns: You have 30 days from delivery to request a return or refund.
- Condition: Items must be undamaged, clean, and include all components so the product is resellable. Proof of purchase is required.
- How to start: Email sales@thecaddybar.com before sending anything back. Once approved, you will receive a prepaid return label and instructions.
- Refunds: After we receive and inspect your return, approved refunds are processed to your original payment method within 10 business days.
- Exchanges: Request a return, then place a new order for the item or bundle you want — this is the fastest way to swap configurations.
- Free return shipping on eligible returns; no restocking fees on eligible items.
- 30-day returns: You have 30 days from delivery to request a return or refund.
- Condition: Items must be undamaged, clean, and include all components so the product is resellable. Proof of purchase is required.
- How to start: Email sales@thecaddybar.com before sending anything back. Once approved, you will receive a prepaid return label and instructions.
- Refunds: After we receive and inspect your return, approved refunds are processed to your original payment method within 10 business days.
- Exchanges: Request a return, then place a new order for the item or bundle you want — this is the fastest way to swap configurations.
- Free return shipping on eligible returns; no restocking fees on eligible items.
Your Cart. Your Rules.
Drinks, devices, and everything else along for the ride. A spot for everything.

Easy Installation
Most full-size CADDYBAR™ installs finish in under 20 minutes. No special tools required.
Easy Mini Installation
Mount the CADDYBAR™ Mini on your struts in under 10 minutes with the included no-drill hardware.
- 1 Attach mounting system to your golf cart windshield struts
- 2 Secure bar to mounting system
- 3 Tighten hardware and check alignment
- 4 Attach accessories and you're ready to go
- 1 Secure the non drill bracket and mount to your cart struts
- 2 Slide the bar into the mount
- 3 Tighten the no-drill clamps until snug
- 4 Add trays and accessories — ready to ride
Installing the new CADDYBAR™
modular storage for your golf cart
Installing the CADDYBAR™ Mini
Front-strut mount for compact carts
Under 20 minutes
All tools included
- CADDYBAR™ System (Drill or No Drill)
Under 10 minutes
All tools included
- CADDYBAR™ Mini or Mini XL (No Drill)
Popular Add-Ons
Make it yours with accessories designed for this CADDYBAR.

Frequently Asked Questions
The CADDYBAR™ supports frame widths of 36–42 inches (and can be shortened with a metal saw blade) and 24-42 inches for the middle/back struts.
Most installs are completed in under20 minutes. Many no-drill configurations can be finished in under 10 minutes when you follow the CADDYBAR™ user guide and installation video. Drill-mount setups may take a bit longer depending on your cart and tools.
All tools are included with each setup.
Orders typically ship within 1–2 business days. You will receive tracking by email when your order ships. Delivery time depends on your location and carrier; most U.S. orders arrive within a few business days after shipment.
You have 30 days from delivery to request a return or refund. Items must be undamaged, clean, and include all components. Email sales@thecaddybar.com to start a return; once approved, we send a prepaid return label. Refunds are processed within 10 business days after inspection. Free return shipping and no restocking fees on eligible items.
